Welded Mesh Used For Military Defense Hesco Barrier
Hesco Barriers Blast Wall Introduction
HESCO Barrier also known as Rock basket retaining wall, hesco barrier, flood control barrier, etc. which is made of the steel welded mesh and lined with non-woven geotextile, can be filled with sand, earth, cement, stone, then as a defensive wall or bunker and widely used in the military to protect safety.
Hesco Barriers Blast Wall Specifications
| Hesco size | 0.61*0.61m,1.37*1.06m,1.37*1.22m,2.12*1.52m,2.21*2.13m |
| Wire diameter | 3.8mm,4.0mm,4.5mm,5.0mm,etc. |
| Mesh size | 50*50mm,65*65mm,76.2*76.2mm,80*80mm,100*100mm |
| Geotextile | 200-400gr/m2 Heavy duty non-woven polypropylene,
color can be beige-sand, olive green,grey,white,etc |
| Spring diameter | 3mm,4mm,5mm,etc. |
| Finish | pre galvanized, galfan coated,hot dip galvanized |
| Packing | Wrapped with shrink film then on pallet |
| Accessories | Y post,Razor wire, Barbed wire |
Hesco Barriers Blast Wall Feature
1. A pre-fabricated gabion of galvanized welded mesh steel fitted with a UV-protecting.
2. Polypropylene geo-textile liner.
3. Filling material is an easy- obtained mix of sand and small stones.
4. It can be used together to any length, and can be stacked for additional height.
Installation:
1, Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
2, Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
3, Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
4, Gabion box filled with graded stone by hand or with a shovel.
5, After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
6, When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones,.
Packing terms
1. Panel all packing with the pallet (steel pallet or wooden pallet)
2. bulk in the container
Product Tags:
|
|

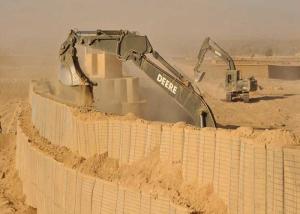

Mil 1B Hesco Barrier Blast Wall Military Defense HESCO Wall Images
|
